Complete PAIR System Removal

[RidersDiscount]

Here, we’ll cover the basics on how to remove the PAIR system from your BMW S1000RR. We used a Driven Racing Smog block off plate kit on our bike. The biggest benefit to this system is that it creates an accurate air/fuel gas mixture readout for your dyno guy to measure since no more air is artificially injected into the exhaust valves to catalyze the ignition of unburned hydrocarbons. The more accurate the air/fuel readout, the easier it is to realize the true power output potential of the big BMW.

To do this, you’ll need to remove the seat, fuel tank and airbox. You’ll need to pull the ECU off the bike as well so you can completely get the airbox out of the way. Remember, you first need to pull the air filter cartridge out in order to get the entire airbox off the bike. What’s particularly nice about the S1000RR’s airbox is that it’s attached to the bike with only four bolts, two of which are used to attach it to the throttle bodies. There’s also a crankcase breather hose that needs to be disconnected so be weary of this.

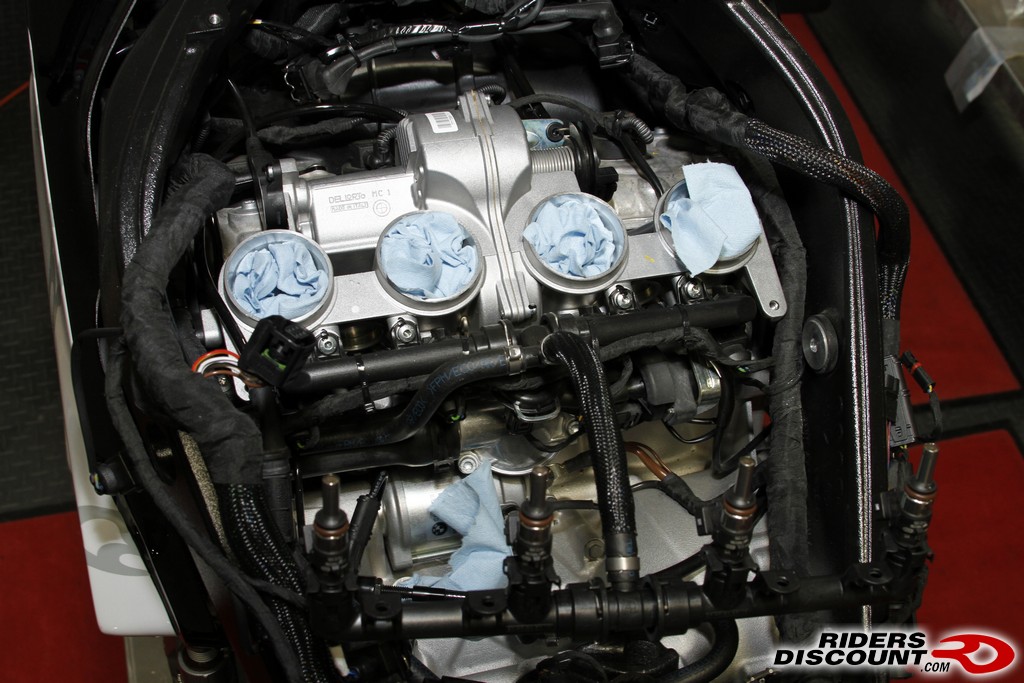

The instant you get the airbox off PLUG ALL HOLES TO THE ENGINE WITH CLEAN RAGS! (including the crankcase breather vent!). There’s no sense in accidentally turning a quick do-it-yourself project into an expensive engine rebuild.


With the airbox is gone, you’ll need to pull the air injector rail off the front of the valve cover – it’s only two bolts but it’s a bit of a pain getting in there so take your time. To give you an idea of the position of the PAIR rail as it sits on the valve cover, here’s an approximate arrangement of the device as it’s attached to the airbox.


The smog block off kit that comes from Driven Racing includes a plug for the AIS pump on the airbox.

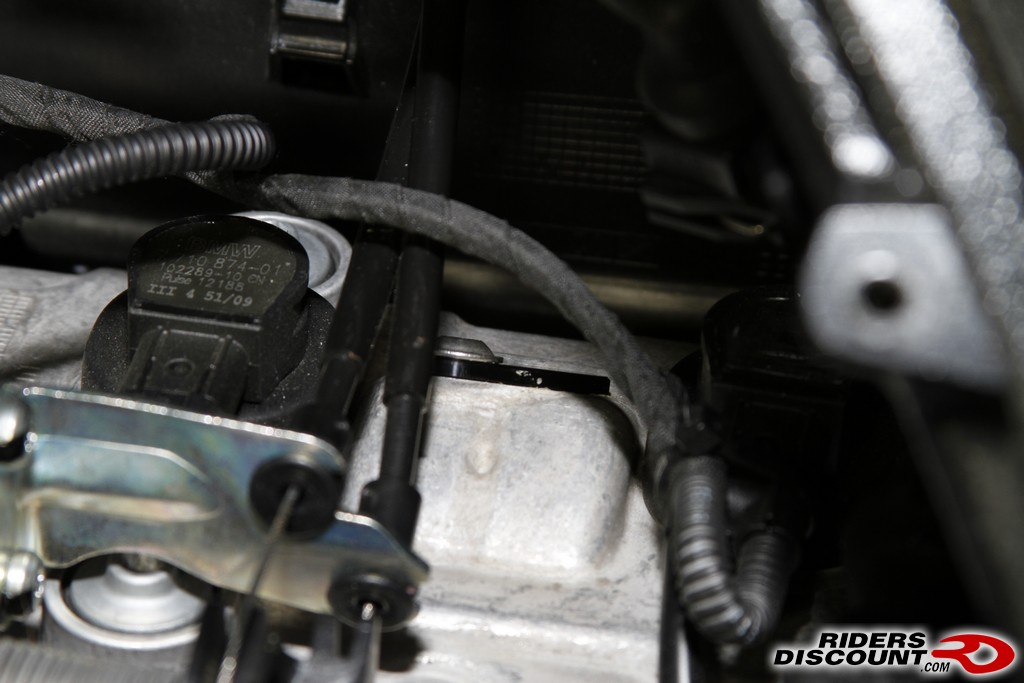

With the PAIR rail free, you’ll need to remove the O-rings that seal it against the valve cover. Here, you can see the PAIR injector port flanked at either side by the Driven plates, one with an O-ring, the other without. Don’t worry, we cleaned up the O-rings before we put everything back on the bike!


We applied thread locking compound to the hardware that fastens the Driven block off plates in place. Since it’s highly unlikely that we’ll need to remove these anytime soon, we didn’t bother replacing the Torx hardware with hex hardware.


The right side cover is a little tricky to get into place since it’s almost directly under the throttle cables.


The plug for the airbox that comes from Driven is longer than it needs to be. We cut it down so that it just covers the plug with no extra slack and zip tied it into place.


Re-assemble everything in reverse and you’re done. Assuming you have a Power Commander or any other fuel tuning module, now would be a good time to head to the dyno and get a custom fuel map!
