Brembo 19 RCS Adjustable Ratio Radial Brake Master Cylinder

Brembo Radial Master Cylinders are found on the fastest bikes in the world because they’re powerful, reliable and built to exacting tolerances for consistent performance under a wide range of conditions. Brembo’s 19 RCS master cylinder is no exception. It offers the unique ability to change brake lever ratios from 19x20 (for power) to 19x18 (for feel) with a simple turn of the screw, something not possible on other Brembo brake master cylinders. The 19 RCS is manufactured using a combination of forge-casting and CNC-machining. Forged parts have a particular advantage over parts machined from billet when it comes to strength since the metal’s grain structure follows closely the shape of the part as it is pressed into its final form. After forging, the aluminum master cylinder blank is then machined to accept all of its hardware: banjo bolt, brake reservoir spigot, lever attachment and – most critical, the brake piston assembly. This multi-stage manufacturing process ensures both strength, through the forging process and precision via CNC finishing - both of which contribute to the master cylinder’s consistent, exacting performance that has made it the “must have” brake upgrade component.

Every Brembo 19 RCS master cylinder comes complete with a break-away lever for crash survivability, a dual-line banjo bolt and a micro-switch controller for street applications allowing you to activate the rear brake light without the need to buy a separate pressure-sensitive banjo bolt switch.

We do not yet have Brembo Brakes on our website. Call TJ at 866.931.6644 ext 817 to order your Brembo 19 RCS master cylinder today. You can also email us with any questions you have – send those to FORUM at RIDERSDISCOUNT dot COM with BREMBO RCS in the subject line and we’ll get back to you fast.

Everything as it comes straight out of the box: 19RCS master cylinder, brake light micro switch, dual-line banjo bolt, stickers and instructions.

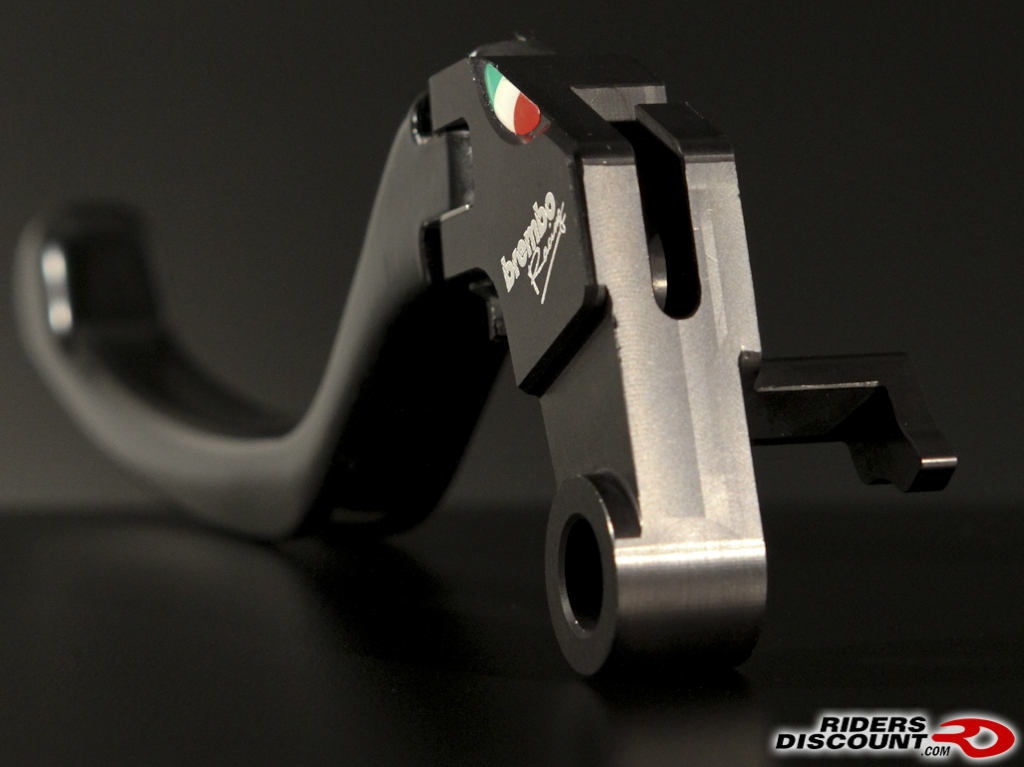

Folding levers used to be only the domain of factory teams, now they’re included as standard with every RCS master cylinder.


A screw behind the rubber cap on the lever allows you to easily switch from 19x20 to 19x18 lever ratios.


Further aiding in safety is the color-coded cam assembly. When viewed from the top, if you see red, you know you’re using a 19x18 ratio. If you see black, you’re at 19x20.


Here we have the 19 RCS installed on our YZF-R1 AMA Superbike. We'll also be putting one of these on our own S1000 RR project bike!


BMW clutch lever


MSRP for RCS19 - $365

Check us out on facebook and become a fan

www.RidersDiscount.com - Find Alpinestars, Arai Helmets, and other motorcyle accessories.

For the best service, call us M - F 10a - 6p EST and don't forget to check out what we're doing with our S1000RR project bike

866.931.6644 ext 817

Last edited by RidersDiscount; 07-25-2013 at 10:31 AM.
RidersDiscount is offline
Sponsored Links
Advertisement

post #2 of 167 (permalink) Old 08-17-2010, 12:54 PM
Member

Nobby_Mike's Avatar

Join Date: Feb 2010
Location: maidstone,kent
Posts: 90
Send a message via MSN to Nobby_Mike
Have one fitted to mine already

BMW made me buy the extra reservoir kit from brembo though too for another 45 quid as they said the original reservoir and pipe where too big.

Great mod though

N O B B Y
Nobby_Mike is offline
post #3 of 167 (permalink) Old 08-17-2010, 01:05 PM
Senior Member

Godzilla's Avatar

Join Date: Aug 2010
Location: England
Posts: 1,399
Garage
Do you still have the original clutch lever?
If so does the bike not look a bit odd with such different levers?
Godzilla is offline
post #4 of 167 (permalink) Old 08-17-2010, 01:52 PM Thread Starter
Platinum Site Sponsor

RidersDiscount's Avatar

Join Date: Jan 2010
Location: Lowest Price, Guaranteed
Posts: 3,964
Garage
Quote:
Originally Posted by Godzilla View Post
Do you still have the original clutch lever?
If so does the bike not look a bit odd with such different levers?
The bike currently has black Synto clutch lever and it looks quite good with the Brembo brake lever.

Check us out on facebook and become a fan

www.RidersDiscount.com - Find Alpinestars, Arai Helmets, and other motorcyle accessories.

For the best service, call us M - F 10a - 6p EST and don't forget to check out what we're doing with our S1000RR project bike

866.931.6644 ext 817
RidersDiscount is offline
post #5 of 167 (permalink) Old 08-17-2010, 02:51 PM
Senior Member

Skipper's Avatar

Join Date: Jun 2010
Posts: 230
TJ price?

thanks lol

Gus
Skipper is offline
post #6 of 167 (permalink) Old 08-17-2010, 03:18 PM Thread Starter
Platinum Site Sponsor

RidersDiscount's Avatar

Join Date: Jan 2010
Location: Lowest Price, Guaranteed
Posts: 3,964
Garage
Sending you a PM now Gus.

Check us out on facebook and become a fan

www.RidersDiscount.com - Find Alpinestars, Arai Helmets, and other motorcyle accessories.

For the best service, call us M - F 10a - 6p EST and don't forget to check out what we're doing with our S1000RR project bike

866.931.6644 ext 817
RidersDiscount is offline
post #7 of 167 (permalink) Old 08-17-2010, 05:35 PM
Senior Member

Join Date: Jun 2010
Posts: 977
Price please.
bmwian is offline
post #8 of 167 (permalink) Old 08-17-2010, 05:51 PM Thread Starter
Platinum Site Sponsor

RidersDiscount's Avatar

Join Date: Jan 2010
Location: Lowest Price, Guaranteed
Posts: 3,964
Garage
Sending PM now

Check us out on facebook and become a fan

www.RidersDiscount.com - Find Alpinestars, Arai Helmets, and other motorcyle accessories.

For the best service, call us M - F 10a - 6p EST and don't forget to check out what we're doing with our S1000RR project bike

866.931.6644 ext 817
RidersDiscount is offline
post #9 of 167 (permalink) Old 08-18-2010, 03:03 AM
Member

Nobby_Mike's Avatar

Join Date: Feb 2010
Location: maidstone,kent
Posts: 90
Send a message via MSN to Nobby_Mike
I still have standard clutch lever at the moment, prob does look odd.

I will change it to a black one eventually though.

Mike

N O B B Y
Nobby_Mike is offline
post #10 of 167 (permalink) Old 10-20-2010, 05:09 PM
Senior Member

Join Date: Sep 2010
Location: yorkshire - england
Posts: 124
Quote:
Originally Posted by Nobby_Mike View Post
Have one fitted to mine already

BMW made me buy the extra reservoir kit from brembo though too for another 45 quid as they said the original reservoir and pipe where too big.

Great mod though

What did they mean "too big" ? for size ?
Or did it affect performance some how ??
Thinking of buying one of these , just wanna be sure of what i'm gonna need .
Cheers
